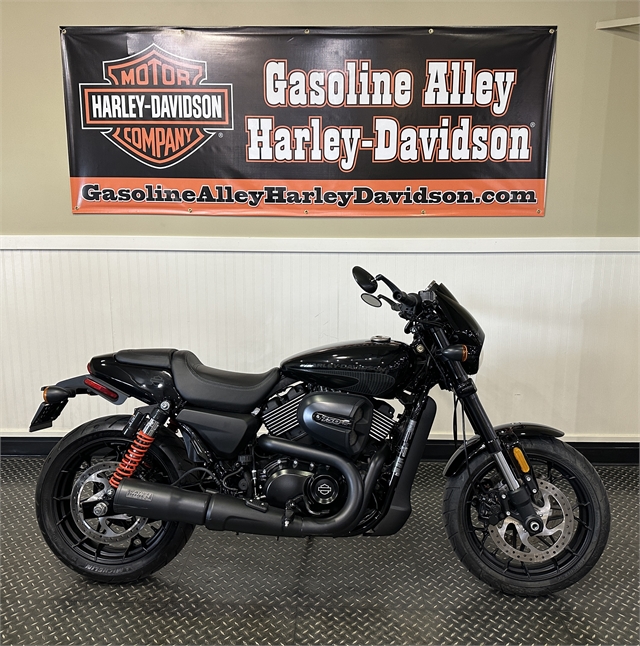

2019 Harley-Davidson Street Rod

Stock #U502402
Your Price: $10,900
Check Availability Hi, my name is and I'm interested in this 2019 Harley-Davidson Street Rod . I'm in the area and you can reach me at or on my phone at .




Add Ons Include:

  • V&H Slip Ons

STREET ROD®
Turn city streets into a thrill ride. Redlines at 9000 rpm, and carves corners with up to 40 degrees of traffic-weaving lean angle.



DIALS IT ALL UP TO THE MODERN EDGE

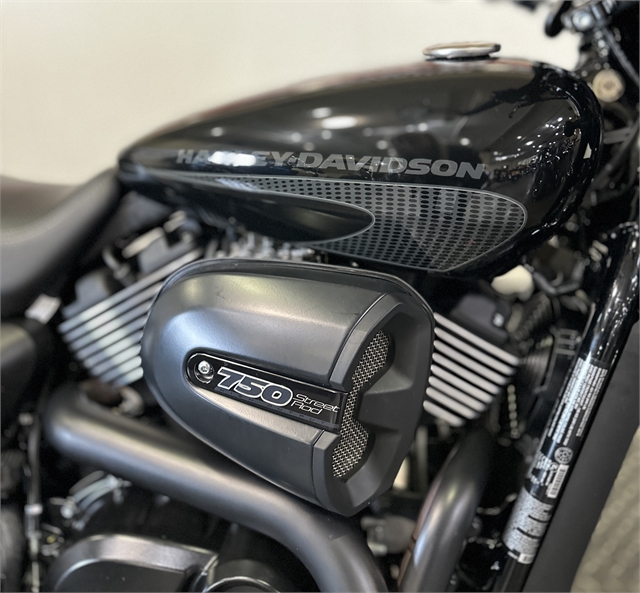

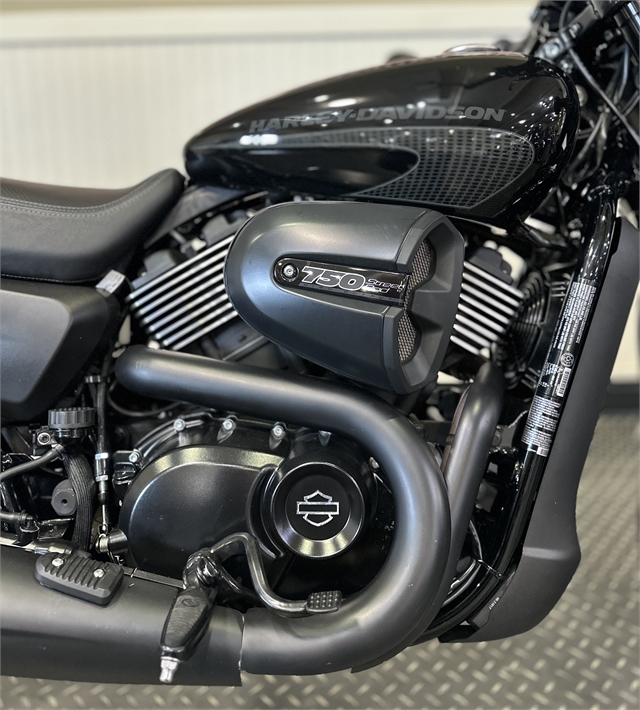

High Output Revolution X™ 750 Engine
With a blacked-out finish, the High Output Revolution X™ engine features a dual throttle body, cylinder heads, enhanced intake ports and cams, and a 12.0:1 compression ratio that delivers 18% more horsepower and 8% more torque than the Harley-Davidson Street

Drag-Style Bars with Bar-End Mirrors
They make for a sportier and aggressive riding position to take on the traffic-snarled urban jungle.

Lightweight Front Fender and Performance Tail Section
A lightweight front fender with black fender bracket plus the 2-up seat performance tail section give the Street Rod bike a sleek, refined look from front to back.

Responsive Front and Rear Suspension
43mm inverted front forks and rear piggyback shocks offer increased suspension travel and are tuned for a sportier ride and greater lean angle.

3.5 Gallon Tear Drop Tank
A 3.5 gallon metal teardrop tank designed with a fast graphic and Harley-Davidson script to show it’s the real deal.

Two-Piece 2-Up Seat with Passenger Foot Pegs
You get a two-piece 2-up seat with a 29.8" seat height, a perforated finish and a French stitch pattern along with foot pegs for your passenger.

  • Status:
    Pre-Owned
  • Vehicle:
    2019 Harley-Davidson Street Rod
  • VIN:
    5HD4NCGA3KC502402
  • Model Number:
    XG750A
  • Mileage:
    6,166 kilometers
  • Color:
    Vivid Black
  • Stock Number:
    U502402
  • Title:
    Clear
  • Location:
    Gasoline Alley Harley-Davidson
  • Warranty:
    Not Specified

BRAKES

  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    3.4
  • Bore (mm):
    86
  • CAN Liters Per Kilometer (Combined):
    4.3
  • Carburetion Brand:
    Mikuni
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    12
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    749
  • Displacement (ci):
    46
  • Engine Brand Name:
    Revolution X™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector Size (mm):
    42
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.6
  • Stroke (mm):
    66
  • Torque (Ft Lbs):
    47
  • Torque (Nm):
    63.7
  • Torque RPM:
    4000
  • US Miles Per Gallon (Combined):
    54
  • Valves Per Cylinder:
    4
  • Valves:
    8

EXTERIOR

  • Belt Guard:
    Yes
  • Body Material:
    Steel
  • Foot Peg Location:
    Driver and Passenger
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes
  • Height:
    Low
  • Tinted:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Light
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    30.1
  • Seat Height (mm):
    764.5
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    Two-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Size (in):
    1.7
  • Front Suspension Size (mm):
    43
  • Front Suspension Type:
    Inverted Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    229.1
  • Dry Weight (lbs):
    505
  • Engine Displacement to Weight (cc):
    1.48
  • Fuel Capacity (gal):
    3.5
  • Fuel Capacity (l):
    13.1
  • Ground Clearance (in):
    8.1
  • Ground Clearance (mm):
    205
  • GVWR (kgs):
    431
  • GVWR (lbs):
    950
  • Length (ft):
    6.99
  • Length (ft/ft):
    6
  • Length (ft/in):
    11.9
  • Length (in):
    83.9
  • Length (mm):
    2130
  • Payload Capacity (kgs):
    193
  • Payload Capacity (lbs):
    425
  • Wet Weight (kg):
    238
  • Wet Weight (lbs):
    525
  • Wheelbase (in):
    59.4
  • Wheelbase (mm):
    1510
  • Width (in):
    34.3
  • Width (mm):
    870

TRANSMISSION

  • Gear Ratio (1):
    14.272
  • Gear Ratio (2):
    10.074
  • Gear Ratio (3):
    7.446
  • Gear Ratio (4):
    6.006
  • Gear Ratio (5):
    5.037
  • Gear Ratio (6):
    4.533
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Gear
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Michelin® 120/70 R17 V
  • Front Tire Aspect Ratio:
    70
  • Front Tire Speed Rating:
    V
  • Front Tire Width:
    120
  • Front Wheel Diameter:
    17
  • Rear Tire (Full Spec):
    Michelin® 160/60 R17 V
  • Rear Tire Aspect Ratio:
    60
  • Rear Tire Speed Rating:
    V
  • Rear Tire Width:
    160
  • Rear Wheel Diameter:
    17
  • Tire Brand:
    Michelin®
  • Wheels Composition:
    Aluminum
